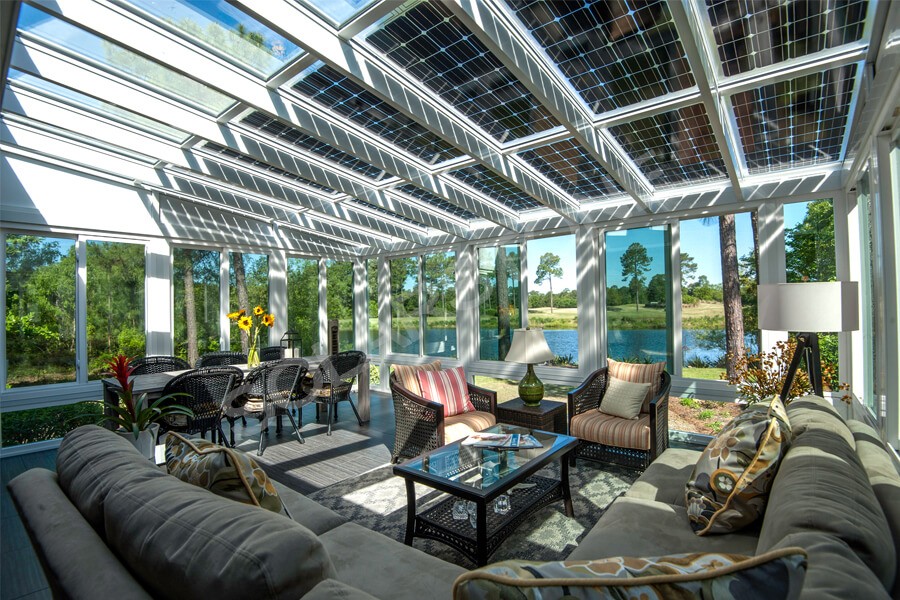

How to Manage BIPV Heat Gain: Thermal Strategies for Solar Facades

How to manage BIPV heat gain in the calculus of high-performance architecture, Building-Integrated Photovoltaics (BIPV) represent a paradox of thermodynamics. While these systems are lauded for their ability to convert the sun’s radiation into carbon-free electricity, they simultaneously function as high-efficiency thermal absorbers. In the context of a 2026 climate characterized by increasingly frequent extreme-heat events, a BIPV envelope that is poorly managed can become a liability—shifting the building’s energy balance by drastically increasing cooling loads and accelerating the degradation of the solar cells themselves.

The challenge is not merely one of energy generation, but of “metabolic equilibrium.” A solar module typically converts only about 18% to 22% of incident sunlight into electricity; the remaining 78% to 82% is dissipated as heat. On a vertical facade or a non-ventilated roof, surface temperatures can easily exceed $75^{\circ}C$ ($167^{\circ}F$). At these temperatures, the electrical efficiency of standard silicon cells drops significantly—often by 0.4% to 0.5% for every degree Celsius above the standard test condition of $25^{\circ}C$.

Addressing this thermal accumulation requires a move beyond traditional insulation strategies toward “active-thermal” management. We must treat the building skin as a dynamic heat exchanger that balances electrical yield, interior thermal comfort, and structural longevity. This pillar article provides a rigorous audit of the engineering logic, physical frameworks, and practical strategies necessary to master the thermal dynamics of integrated solar systems in the American built environment.

Understanding “how to manage BIPV heat gain”

How to manage BIPV heat gain to effectively address how to manage BIPV heat gain, one must first dismantle the oversimplification that heat is simply a byproduct to be vented. In advanced building physics, managing heat gain is a multi-dimensional optimization problem involving the Solar Heat Gain Coefficient (SHGC), the U-value of the glazing, and the Thermal Coefficient of Power. A common misunderstanding among developers is that adding solar panels to a facade naturally reduces the heat entering a building because the cells “block” the sun. While the cells do provide a shading effect, the heat they absorb is often re-radiated into the building’s interior via the secondary heat transfer of the glass or cladding.

True mastery of this discipline involves managing the Energy Balance Equation. When a PV cell is in its maximum power point (MPP) state—meaning it is actively generating electricity—it is actually cooler than when it is in an open-circuit (OC) state. This is because a portion of the solar energy is being converted into electrons and “shipped” out of the system rather than being converted into thermal vibration. Therefore, an electrical fault in a BIPV system isn’t just a loss of power; it is a thermal risk that increases the building’s heat load.

Furthermore, “managing” heat does not always mean “removing” it. In colder American climates, the best-designed BIPV systems are those that use a “seasonal metabolic” approach—venting heat during the summer to reduce cooling demand, but capturing that same waste heat in the winter to pre-heat the building’s fresh air intake. This shift from “mitigation” to “utilization” defines the current state of the art in 2026.

The Physics of Thermal Accumulation How To Manage BIPV Heat Gain

The thermal behavior of a BIPV module is governed by three distinct heat transfer pathways.

1. Convective Heat Transfer

This is the most critical lever in BIPV design. By creating a “ventilation chimney” (an air gap) behind the solar module, architects can trigger the “stack effect.” As the air in the cavity heats up, its density decreases, causing it to rise and draw in cooler air from the bottom. This natural convection can reduce cell temperatures by as much as $15^{\circ}C$ to $25^{\circ}C$ if the cavity depth is optimized—typically between 10cm and 15cm for vertical facades.

2. Radiative Heat Transfer

The front surface of the BIPV module radiates heat to the sky, while the back surface radiates heat toward the building envelope. Using “Low-E” (low-emissivity) coatings on the interior-facing surface of the BIPV glass can drastically reduce the amount of heat that is “dumped” into the interior living space.

3. Conductive Heat Transfer How To Manage BIPV Heat Gain

In “cold-roof” or non-ventilated “hot-roof” configurations, heat travels directly through the mounting hardware and the insulation layers. Thermal bridging—where a metal fastener or frame acts as a highway for heat to bypass insulation—is a frequent failure point in high-luxury BIPV installations that prioritize sleek metal aesthetics over thermal breaks.

Conceptual Frameworks: Mental Models for Designers

The “Laminar vs. Turbulent” Flow Model How To Manage BIPV Heat Gain

A thin air gap might seem sufficient, but if the gap is too narrow, the air becomes trapped in a “laminar” state, acting as an insulator rather than a coolant. For high-rise BIPV, the goal is to design for Turbulent Convection, where the air mixes vigorously as it rises, maximizing the “scrubbing” of heat from the back of the solar cells.

The BIPV/T (Thermal) Utilization Framework

Instead of viewing BIPV as a singular electrical component, this framework views it as a Solar-Thermal Hybrid. By integrating water-filled or air-filled heat exchangers behind the panels, we can harvest the “waste” heat for domestic hot water or space heating. This effectively doubles the total energy efficiency of the system from ~20% (electrical only) to over 50% (combined).

The “Thermal-Lag” Strategy

Using materials with high thermal mass (sech as concrete or phase-change materials) behind the BIPV can delay the heat gain. The facade absorbs the heat during the peak of the day and releases it slowly at night when the building is unoccupied or when ambient temperatures have dropped, reducing the peak strain on the HVAC system.

Key Mitigation Categories: Passive vs. Active Strategies

Strategy	Mechanism	Performance Impact	Complexity
Rear-Ventilated Cavity	Natural “stack effect” buoyancy	$10 – 20^{\circ}C$ reduction	Moderate
Forced Air Cooling	Integrated DC fans	$25 – 35^{\circ}C$ reduction	High
Spectral Selective Glass	Reflects IR light; admits visible	30% lower SHGC	Low
Phase Change Materials (PCM)	Absorbs heat by melting	Stabilizes peak temp	High
Active Liquid Cooling	Water/Glycol heat exchanger	Maximum cooling; heat recovery	Very High
Bifacial Transparency	Gaps between cells	Higher VLT; lower absorption	Low

The Critical Role of Cavity Depth How To Manage BIPV Heat Gain

Research in 2025-2026 has confirmed that there is a “diminishing return” on cavity depth. A 2cm gap is often worse than no gap at all due to stagnant air pockets. A 10cm gap is the “sweet spot” for most American mid-rise buildings, while 40cm or larger gaps (Double Skin Facades) allow for integrated walkways that facilitate both maintenance and massive convective cooling.

Detailed Real-World Scenarios How To Manage BIPV Heat Gain

The South Facing Desert Skyscraper (Phoenix, AZ)

• The Setup: A unitized curtain wall with integrated monocrystalline spandrels.

• The Solution: A 15cm ventilated rainscreen design with “Low-E” rear coatings.

• Outcome: By allowing the heat to escape through a continuous vertical “chimney” every three floors, the building reduced its cooling load by 22% compared to a non-ventilated BIPV facade.

• Failure Mode: “Soot Accumulation.” In desert environments, dust buildup in the ventilation gap can act as an insulator, reducing the convective efficiency over time.

 The Northern Urban Retrofit

• The Setup: A historic brick building retrofitted with “solar slate” shingles.

• The Solution: An “Inlet-Outlet” ventilation system at the eaves and ridge.

• Outcome: In the winter, the “waste heat” from the shingles creates a warm air pocket that reduces the building’s heat loss through the roof.

• Second-Order Effect: The reduced thermal stress on the shingles extended their forecasted lifespan from 25 to 35 years.

The High-Transparency Boutique Office

• The Setup: Semi-transparent thin-film PV glass.

• The Solution: Spectral-selective coatings that reflect 90% of Near-Infrared (NIR) light.

• Outcome: The glass remains highly transparent for the occupants while generating power and preventing the “greenhouse effect” common in glass-heavy modern offices.

Planning, Cost, and Resource Dynamics

Managing BIPV heat gain is an exercise in balancing capital expenditure (CAPEX) against operational savings.

Investment Tier	Added Cost (per Sq Ft)	Energy Savings (HVAC)	ROI Impact
Standard Ventilated Gap	$5 – $15	10 – 15%	Faster (4-6 years)
BIPV/T Heat Recovery	$40 – $70	30 – 50%	Moderate (8-12 years)
Advanced PCM Integration	$60 – $100	High Peak Reduction	Slower (12+ years)

The Cost of Inaction: Failing to manage heat gain is not a neutral choice. In a high-temperature scenario, a 1MW BIPV array can lose over 150,000 kWh of production annually due to thermal degradation—a fiscal loss of nearly $25,000 per year at average commercial rates, not including the added HVAC costs.

Risk Landscape and Failure Modes How To Manage BIPV Heat Gain

A common risk in BIPV is Thermal Fatigue. When a module is trapped in a non-ventilated state, the constant cycling between $10^{\circ}C$ (night) and $80^{\circ}C$ (peak day) causes the different materials in the module (glass, silicon, plastic encapsulants) to expand and contract at different rates. This leads to Delamination—the peeling apart of the module layers—which allows moisture to enter and corrode the electrical circuits.

Compounding Risk: “Secondary Re-radiation.” If the ventilation gap is not sealed properly from the building’s interior, the hot air in the cavity can leak into the plenum spaces or occupied areas through window frames or structural penetrations. This “convective leak” can bypass the building’s insulation, effectively heating the building from the inside out.

Governance, Maintenance, and Long-Term Adaptation

Maintaining the thermal health of a BIPV system requires a specific “check and balance” protocol:

1. Thermal Imaging Audits: Every 24 months, a drone-based IR scan should be conducted during peak sun hours. This identifies “hot spots” which indicate either an electrical short (arc fault) or a blocked ventilation cavity.

2. Cavity Cleaning: In urban environments, bird nests, debris, or “urban soot” can block inlets. A semi-annual inspection of the air intake grilles is mandatory.

3. Sensor Calibration: BIPV/T systems rely on temperature sensors to trigger fans or pumps. If these sensors “drift,” the system may fail to cool itself during a heatwave, leading to rapid component aging.

BIPV Thermal Checklist:

• [ ] Verify all intake and exhaust vents are free of obstructions.

• [ ] Check for “browning” of encapsulants (sign of chronic overheating).

• [ ] Confirm that the BMS (Building Management System) is correlating PV output with cavity temperature.

• [ ] Inspect sealant joints for signs of heat-induced cracking or “bleeding.”

Common Misconceptions How To Manage BIPV Heat Gain

• Myth: “Heat is only a problem in the desert.” Correction: High humidity in places like Miami reduces the effectiveness of convective cooling, making moisture-resistant thermal management even more critical.

• Myth: “Black panels are always the best.” Correction: Colored BIPV or “frosted” glass can reflect more infrared heat, staying significantly cooler than deep black panels and often yielding more total energy over a 24-hour cycle.

• Myth: “Insulation behind the panel is enough.” Correction: Insulation without ventilation just traps the heat inside the solar module, destroying the cells. You must have a way for the heat to escape to the atmosphere.

Conclusion: The Synthesis of Performance and Form

The question of how to manage BIPV heat gain is the defining technical challenge of the solar-integrated era. We are moving away from an era of “add-on” technology and toward a future of “bioclimatic skins”—envelopes that breathe, cool themselves, and harvest energy with the elegance of a biological organism. The architects and engineers who master the thermal dynamics of these systems will be the ones who build the resilient, high-value assets of the late 21st century. By prioritizing convective paths, spectral selectivity, and thermal utilization, the American building stock can transition from being a victim of rising global temperatures to being a primary solution in the cooling of our cities.
